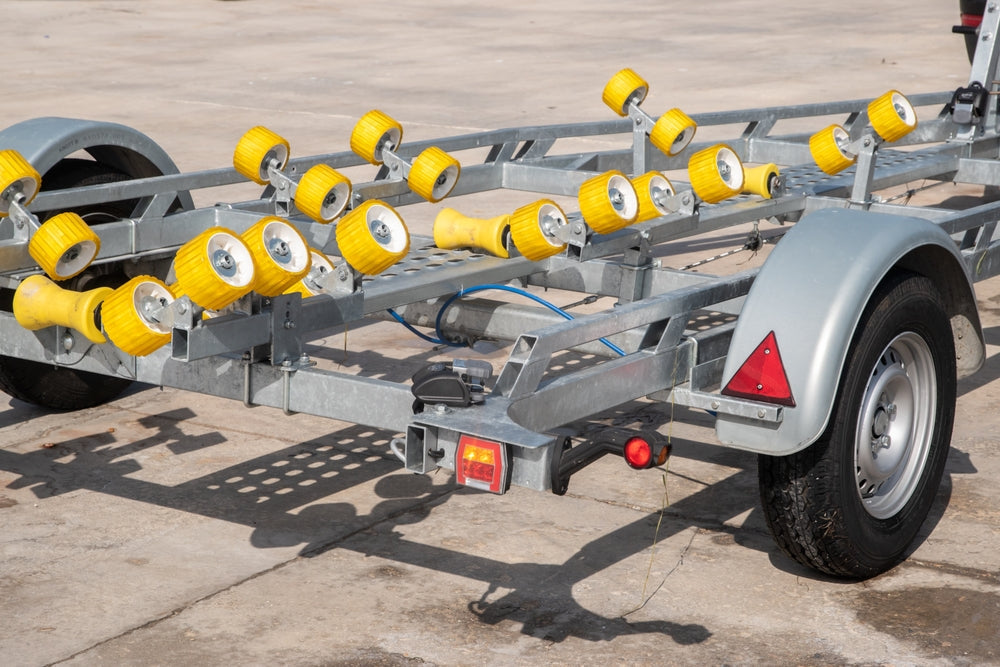

Boat ramp rollers are rotating wheels or cylinders mounted on a boat trailer. Their primary purpose is to support the boat's hull and allow it to move smoothly through launching and retrieval. Instead of dragging across fixed surfaces, the boat rolls over the trailer's rollers as it enters or leaves the water. This reduces resistance and helps to minimize stress on both the trailer and the boat itself. Depending on the trailer design, rollers may be positioned along the centerline, at the keel, on wobble roller assemblies, or at various support points beneath the hull. The exact configuration varies according to the type and size of boat being transported.
Why rollers matter
Quality rollers do a lot more than just make launching easier. They help to distribute the boat's weight, reduce pressure points, and provide support during transport. When rollers become damaged, seized, or misshapen, they can place uneven stress on the hull and make loading significantly more difficult. In some situations, worn rollers may even contribute to cosmetic damage or unnecessary wear on the underside of the boat. For this reason, trailer rollers should be considered an important maintenance item rather than a component to ignore until failure occurs.
Common types of boat ramp rollers.
There are several different roller styles available, each designed for specific applications and trailer configurations.
Keel rollers
Keel rollers are among the most common types found on boat trailers. Positioned along the trailer's centerline, they support the strongest part of the hull, known as the keel. These rollers carry a significant portion of the boat's weight and help guide the vessel onto the trailer during retrieval. Keel rollers are available in various diameters and widths to accommodate different trailer designs and boat sizes.
Wobble rollers.
Wobble rollers are typically mounted in pairs on pivoting brackets. Their design allows them to conform to the hull's contours, providing flexible support over a wider surface area. Wobble rollers are often found on trailers used for fibreglass boats and vessels with more complex hull shapes. Because they pivot independently, they help to maintain contact with the hull while distributing loads more evenly.
Bow rollers
Bow rollers sit at the front of the trailer and help to guide the boat into position during loading. These rollers also assist with alignment and can reduce contact between the bow and hard trailer components. While they do not usually carry substantial weight, they play an important role in protecting the boat during retrieval.
Side rollers.
Some trailer designs include side rollers that provide additional lateral support. These rollers help to stabilize the boat during transport and may assist with guiding the hull during launching and loading operations. They can also make it easier to launch at shallow or less-developed ramps by helping guide and steady the hull as it moves on and off the trailer. The specific design varies depending on the trailer manufacturer and intended application.
Materials used in boat ramp rollers.
The material used in rollers affects durability, performance and suitability for different environments.
Rubber rollers.
Traditional black rubber rollers remain common due to their affordability and flexibility, though they can sometimes leave marks on the hull compared with some other materials. Rubber provides cushioning and generally performs well across a wide range of applications. However, prolonged exposure to sunlight and harsh conditions may eventually lead to cracking or deterioration.
Polyurethane rollers.
Polyurethane rollers have become increasingly popular due to their durability. They resist UV damage, cracking, and wear more effectively than many traditional rubber options. Polyurethane products often provide longer service life, particularly in demanding marine environments.
Poly rollers.
Various polyethene and composite materials are also used in marine trailer applications. Plastic or poly rollers are lightweight and are often best suited to smaller boats rather than heavier setups. These rollers are generally resistant to water absorption and can perform well in both fresh and saltwater conditions. Material selection often depends on boat weight, usage patterns, environmental exposure, and personal preference.
How to determine the correct roller size?
Choosing the right-sized roller is important for both trailer performance and hull protection. Replacing rollers with incorrect dimensions can create alignment issues, reduce support, or place unnecessary pressure on specific sections of the boat. Choosing the right boat trailer rollers depends on taking accurate measurements and ensuring the parts are compatible with the trailer hardware.
4.1 Roller Width and Length
The width of the roller affects how much surface area supports the boat. A wider roller can spread the load more evenly, while a narrower one may suit smaller or more confined bracket setups. Roller length should be measured carefully to ensure a proper fit before ordering new rollers.
4.2 Outer Diameter
The outer diameter determines how high the boat sits on the trailer and how the load is distributed. A larger diameter may raise the hull slightly and provide a broader rolling surface, while a smaller diameter keeps the hull closer to the frame.
4.3 Centre Bore and Shaft Size
The centre bore must match the shaft or spindle that runs through the roller. This measurement affects how securely the roller fits and whether it can rotate properly, and the roller must also match the trailer brackets and spindle setup for proper installation.
Roller width
The width of the existing roller is typically the first measurement to confirm. Measuring the roller from end to end, excluding any washers or mounting hardware, replacement rollers should generally match the original width unless the trailer configuration is being modified.
Diameter.
Roller diameter affects how the boat sits on the trailer and how smoothly it loads and unloads. Measure the diameter across the widest section of the roller. Using a significantly different diameter may alter boat positioning and affect trailer geometry.
Shaft diameter.
The centre bore must match the roller shaft or spindle, even if the width and diameter are correct, and an incompatible bore size can prevent proper installation. Checking all dimensions before ordering can help to ensure a successful replacement.
Signs your rollers need replacing.
Boat trailer rollers are experiencing constant wear, and regular inspections are always recommended. There are several warning signs that may indicate the need for replacement.
Cracking or splitting
Visible cracks are among the most obvious indicators of deterioration. Exposure to UV rays, age, and environmental conditions can cause materials to become brittle over time. Once cracking begins, structural integrity can be compromised.
Flat spots.
Rollers should rotate smoothly and maintain their intended shape. Flat spots can develop when rollers remain under load for extended periods or experience material degradation. These deformations may reduce performance and increase stress on the hull.
Excessive wear.
It takes time, but rollers gradually wear down through normal use. If a roller has lost significant material or no longer resembles its original profile, replacement should be considered quite quickly.
Seized rollers.
Rollers that no longer rotate freely create unnecessary friction during launching and retrieval. Seized rollers may indicate problems with the shaft, bushes or roller material itself. Ignoring this issue makes loading more difficult and places additional strain on the trailer system that could have been avoided.
Discoloration and material breakdown.
Fading, chalking, or surface deterioration may signal that the material is reaching the end of its useful life. While cosmetic changes alone may not warrant immediate replacement, they indicate advancing wear.
How often should you inspect your rollers?
A visual inspection should be performed regularly, particularly before long trips or peak boating seasons. Trader owners should check the roller condition, mounting hardware, roller movement, signs of cracking, shaft wear, and bracket condition. Roller setups usually require more maintenance than bunks because they have moving parts that must rotate freely. Saltwater users may benefit from more frequent inspections due to the harsher operating environment. Catching minor issues early often prevents larger maintenance problems from occurring later.
Replacing rollers: DIY or professional installation process?
Many boat owners choose to replace rollers themselves. For straightforward installations with standard components, the process is often straightforward. However, larger trailers or more complex support systems may require additional care. Ensuring that the boat remains properly supported during replacement is essential. If multiple rollers require replacement simultaneously, professional assistants may be worthwhile. Correct installation can help to ensure optimal performance and long-term reliability.
Maximizing roller lifespan.
While rollers eventually do wear out, several maintenance practices can help to extend their service life. Regular freshwater rinsing after saltwater use removes corrosive residues. Periodic inspections allow problems to be identified early. Replacing worn shafts or hardware when necessary can also improve roller performance. Proper trailer storage, particularly out of direct sunlight when possible, may further reduce material degradation. Small maintenance efforts now will often contribute to significantly longer component life.
Boat ramp rollers may be relatively small components, but they play a big role in protecting your boat and ensuring smooth trailer operation. Choosing the correct roller type, selecting the right size, and replacing worn components when necessary improve launching performance, reduce hull stress, and help to maintain the overall condition of the trailer. When you understand the different roller options available and inspect them regularly, you'll be able to avoid many common trailer-related issues and enjoy safer, more efficient boating experiences. Whether you're replacing a single worn roller or upgrading an entire trailer setup, investing in quality boat ramp rollers is a practical step towards protecting both your vessel and your trailer for years to come.
