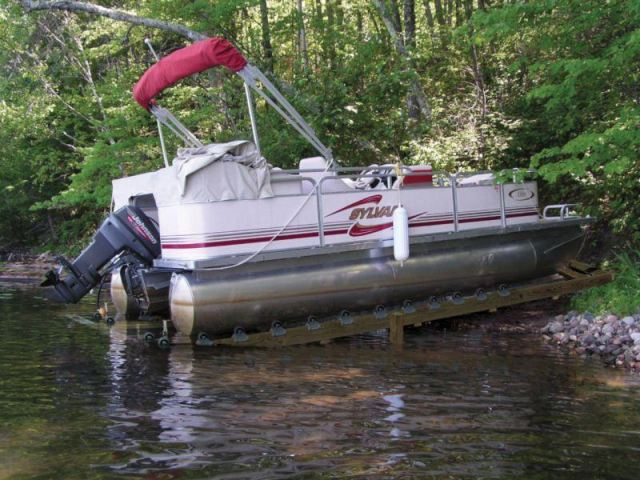

The ShoreDocker Pontoon Ramp simplifies the process of bringing the boat up from the water and storing it on shore. The ramp comes as a kit with detailed instructions, making assembly easier. This guide takes you through how to set up ShoreDocker’s pontoon ramps.
Easy-to-Use Kits: Classic or Premium
Choose from ShoreDocker’s Classic or Premium ramps. The aluminum Premium ramp resists rust for great long-lasting strength. ShoreDocker’s budget-friendly Classic kit, which we discuss how to install below, is available with or without hardware.
The Roll-N-Go Premium is for 16- to 18-foot pontoon boats up to 2,000 pounds. The ramp system features a 16-foot Aluminum Track Kit, a durable 1,600-pound standard winch, a 30-foot strap, 12 polyurethane rollers, and one keel roller. For longer boats, ShoreDocker offers a convenient eight-inch extension kit add-on. You can also upgrade to a self-braking winch with a longer strap.
In comparison, the ShoreDocker Classic Pontoon Boat Ramp System is a “do-it-yourself” (DIY) kit that includes 48 polyurethane rollers, 24 strengthening side braces, and a 1,600 winch with a 30-foot strap and hook. You can add the Pontoon Series Hardware Kit as an add-on. Longer boats (over 16 feet) will also need the extension kit. Simply add pressure-treated lumber to the customizable launch system, which is not included.
Installing the Classic Pontoon Boat Ramp System
The affordable kit includes a clear assembly manual, so putting the ramp together is straightforward. We encourage you to read all warnings and instructions before starting the project for optimal safety. The following is an overview of installation, although you must always refer to your kit’s specific guide, which has the most up-to-date instructions, given that details can change over time.
Begin with the frame layout. Lay out the side rails and cross-members, marking where cross-members meet the rails.
Next, pre-attach the corners (loosely, with just a screw or two) to square the frame. Measure diagonals and adjust until they are both within a 1/4-inch difference.
Finish attaching the cross-members, securing them to the rails according to the layout in the included manual. Use two fasteners per joint.
Then, install the side braces to strengthen the joints. Drill holes into cross-members and rails, inserting bolts, washers, and locknuts.
Add a stiffener, typically a 4x4, between the inside rails, and a front-end plate to cap the front of the rails. Next, bolt the winch cross-member between the inner rails before attaching the vertical winch post. In terms of height, aim for the pulling line to be parallel to the rail, as best possible.
Mount the winch, then securely hook the strap. Attach the roller assemblies after that by using the template to locate and drill holes for the rollers on the rails and cross-members. Insert the rollers with bushes and fasteners, ensuring the rollers align in rows across the rails.
Next, raise the assembled ramp into position. Use support legs, blocks, or pads under cross-members to prevent sag. For more stability, use shorter leg heights.
Important to Note: It is vital that the ramp be level side-to-side and that the frame not bend when the boat’s weight is on it. We suggest doing test runs with a light load or part of the boat to ensure proper alignment, roller clearance, and ramp stability.
Using Your ShoreDocker Classic Pontoon Ramp
From bringing the boat up out of the water to putting the boat into the water, here are the details for using your new ShoreDocker pontoon ramp. Using it properly is essential for safety and a longer lifespan.
Retrieving and Docking
Position the ramp so that the water-end rollers are a few inches underwater, just enough for the rollers to engage. Ensure alignment with the pontoons for the correct shoreline position.
Next, anchor the ramp by securing the top (the winch end) to the ground, a tree, or anchor points to prevent it from sliding downhill under the weight. Make sure the attach point can handle the load, reinforcing it if necessary by bolting across structural supports.
Then, prepare your pontoon boat for going up the ramp. Lock the motor or raise it in position so the lower unit doesn’t catch on the rollers. Approach the ramp slowly, aligning the pontoons with the ramp rails.
Attach the winch strap to the bow eye. Be sure to double-check that the hook is secure and the safety latch is closed.
Once you confirm the winch racket is in the “pull-in” position, begin to crank the handle (or press the power winch button, if upgraded). Never let the handle spin hands-free, and stand to the side of the winch, not behind it, to avoid injury. Continue to crank steadily as the boat rolls forward onto the rollers, keeping tension on the winch strap at all times.
Bring the boat fully out of the water and onto the ramp, with the stern fully resting on the back rollers and the motor off the ground. Leave the winch strap tense and lock the ratchet to secure it on the ramp. If storing the boat long-term, add a safety tie-down or chock.
Launching Your Pontoon Boat
To put the boat in the water, submerge the water-end rollers of the ShoreDocker Classic Pontoon Ramp just enough so they smoothly roll without scraping the hull. Then, prepare the winch.
If your winch has a ratchet or lock, engage it so the strap doesn’t slip or unwind unexpectedly. Loosen the ratchet carefully, only enough to let the boat move. Ensure the boat won’t run freely.
Lower the boat slowly, turning the winch handle (or using the motorized winch, if upgraded) to gradually roll the boat down the ramp. Always keep a firm grip on the winch handle and stand to the side, not directly behind it, to prevent injury. Watch both platoons to ensure they remain aligned on the rollers.
Once the boat is fully in the water and floating, unhook the strap from the bow eye. Carefully back the board off the ramp into the water.
Installing and Using Your DIY Pontoon Ramp
Whether you’re storing your boat for the season or enjoying it regularly, the ShoreDocker Pontoon Ramps offers a convenient solution. With Premium and Classic choices, you can choose the one that’s the best fit. The DIY Classic kit is durable and easy to assemble, with an included winch and rollers for smooth launching and retrieval. When winter comes, the ramp offers safe storage and easy winterizing, protecting your boat for significantly less than a permanent boat lift. With no dock needed, ShoreDocker Pontoon Ramps make enjoying and caring for your boat easier.
